Description

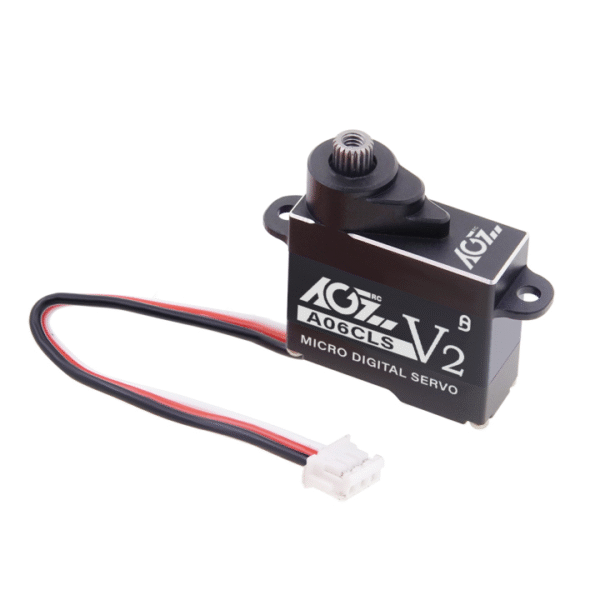

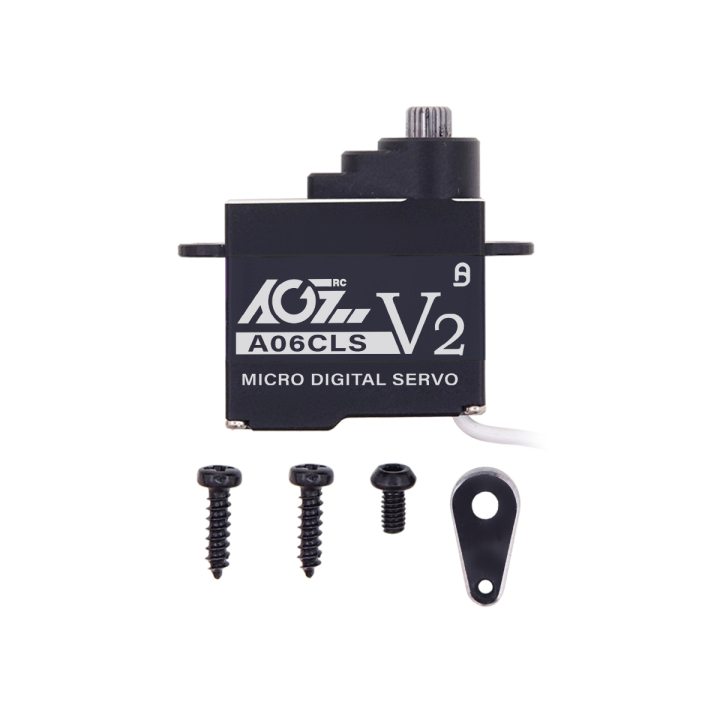

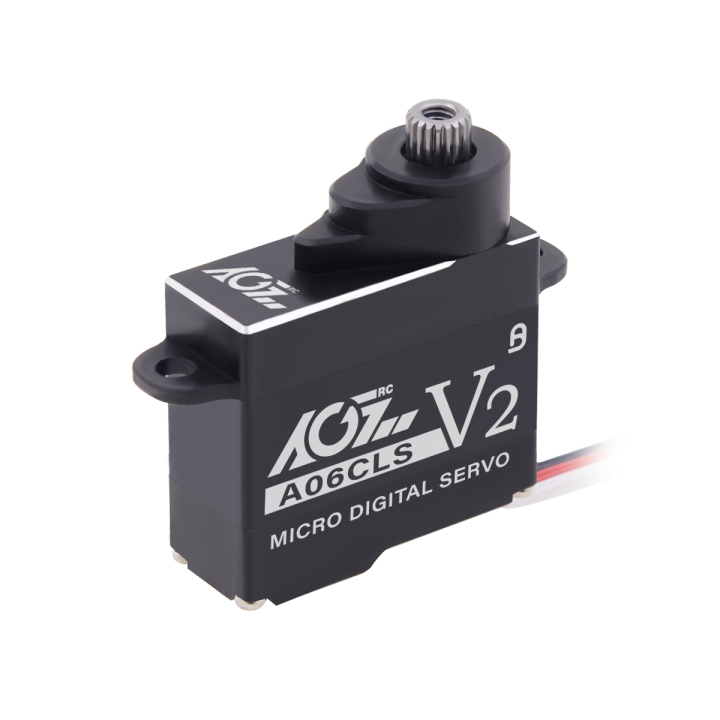

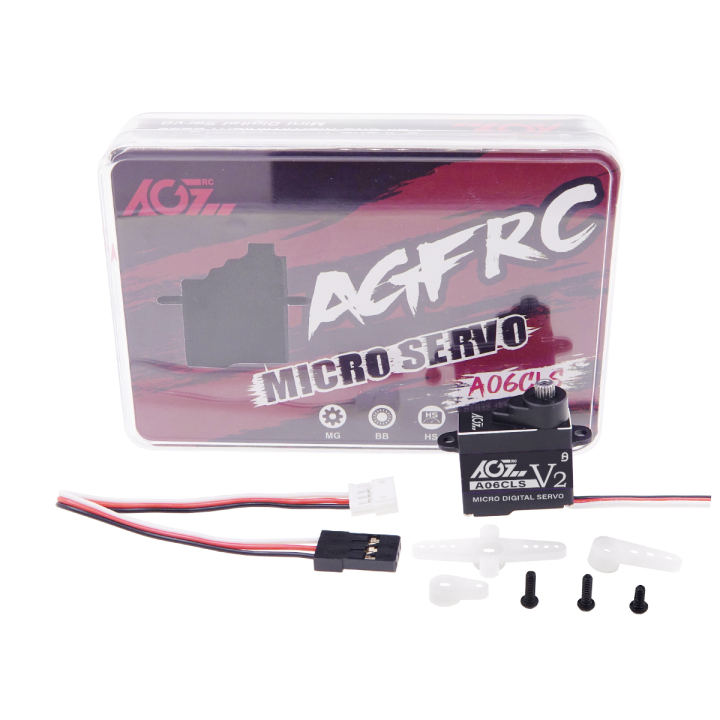

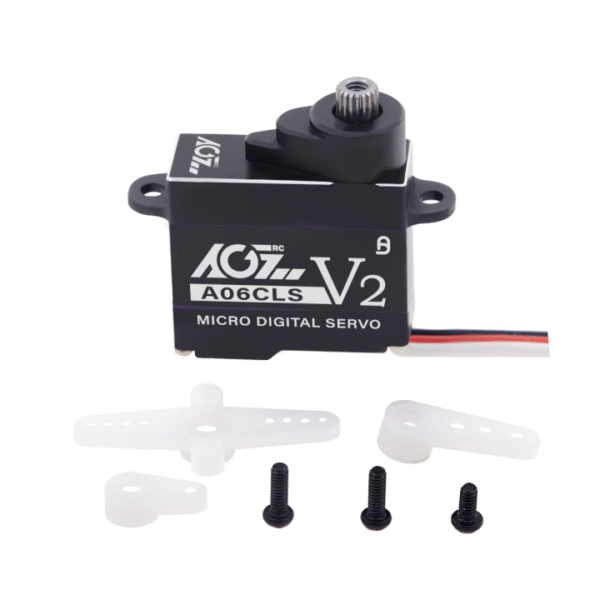

Ultra Light Weight Mini Z Servo
High Accuracy Titanium Gear
High Quality Coreless Motor
Fast Cooling Aluminum Case
2s Wide Voltage Application
DIY parameter via USB programmer card
Design for mini z cars, RC cars
Specification
Model Name: A06CLS V2 (15T Version)
– Operating Voltage: 4.8V ~ 8.4V
– Operating speed: 0.075sec/60°@4.8V
– Operating speed: 0.066sec/60°@6.0V
– Operating speed: 0.058sec /60° @ 7.4V
– Operating speed: 0.052sec /60° @ 8.4V
– Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V
– Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V
– Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V
– Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V
– Gear: Titanium
– Motor: Coreless
– Size: 20 x 8 x 17.8mm (0.78 x 0.31 x 0.70 in)
– Weight: 7g
– Connector Wire: JST 45mm / 28AWG
