Description

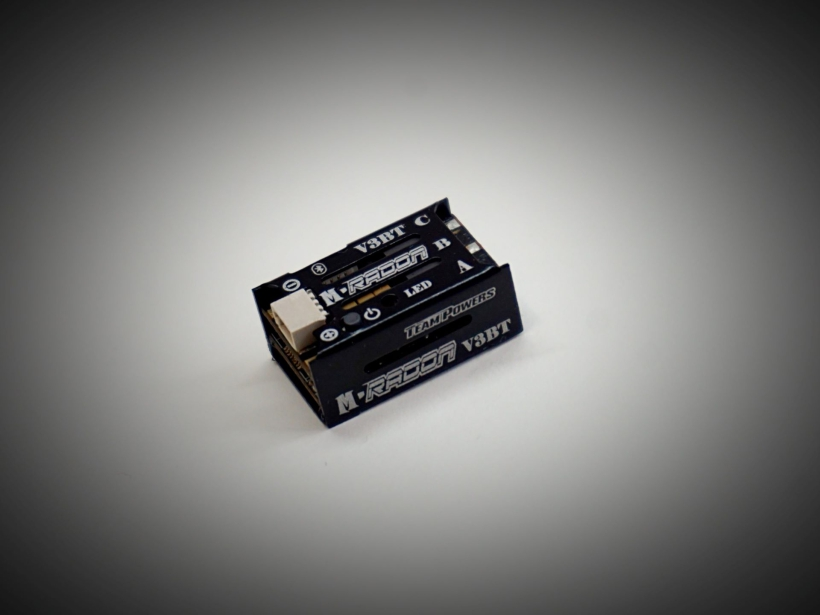

Upgraded features from M-Radon V2.1:
. Change to 32-bit MCU with ultra-smooth, faster response with precise throttle and braking control. More top end power with the same item function setup.
. Support ~2.5A BEC ampere drawn which is raised up by ~60%.
. Support ~30A instant ampere drawn by the motor which is raised up by ~50%.
. All wire are exposed to open area for easy soldering.
. Built-in Bluetooth device for advanced programming and firmware update through the Mobile APPS.
. APPS will be available on both IOS and Android.
. Real Time Data Analysis through Mobile APPS(Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing).
. Support ~2.5A BEC ampere drawn which is raised up by ~60%.
. Support ~30A instant ampere drawn by the motor which is raised up by ~50%.
. All wire are exposed to open area for easy soldering.
. Built-in Bluetooth device for advanced programming and firmware update through the Mobile APPS.
. APPS will be available on both IOS and Android.
. Real Time Data Analysis through Mobile APPS(Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing).
Software:
. It is a new developed software with more advanced item functions added which is closed to the same as Radon Pro V5BT.
. Each item have small step to fine tune.
. All update item functions information can be reviewed from the photos attached.
. It is a new developed software with more advanced item functions added which is closed to the same as Radon Pro V5BT.
. Each item have small step to fine tune.
. All update item functions information can be reviewed from the photos attached.
Specification:
– Battery Input Voltage: 2S lipo
– BEC: 6V/2.5A
– 1/27 motor Limit: 10000kv or below
– Max Ampere draw: ~30A per phase
– Size: ~22.5×13.5x9mm(not include the plug)
– Weight: ~5g(without any wire installed)
