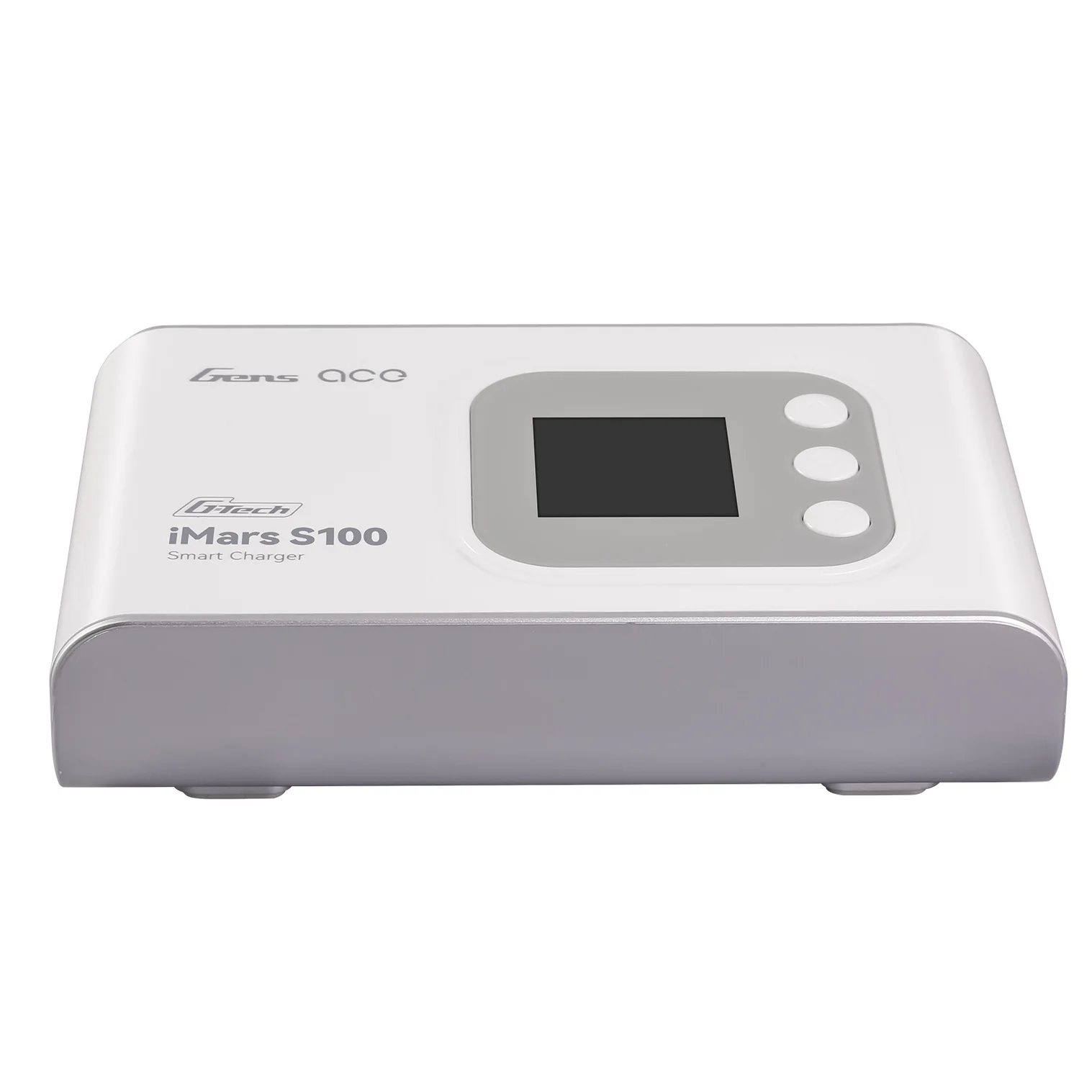

GEAS100-EW Gens ace iMars S100 G-tech Smart Charger | AC 100W | White

Description

Key Features

• 10A charge rate capacity
• 100–240V worldwide voltage support
• Delivers up to 100W of power
• Ideal for FPV & Car batteries

The iMars S100 is an upgrade from the iMars Pro III and a proud new addition to the G-Tech Eco family. It is specifically designed for G-Tech smart batteries and remains fully compatible with non-smart batteries.

What’s New?

1. Mechanical Keys: Replaces the touchpad with physical buttons, inspired by our Dual 300W charger. Includes G-Tech port integration for seamless compatibility.
2. Unified UI Language: Consistent with the Dual 300W charger interface, ensuring easier navigation across all future releases.

These upgrades enhance ergonomics and usability, making the iMars S100 ideal for a wide range of applications—from 3-inch FPV drones and Airsoft pistols to 1:10/1:8 racing cars and 700-series helicopters.

Specifications

•  Input Voltage: AC 100–240V
•  Output Voltage: 27V (max)
•  Max Input Current: 50–60Hz, 1.5A
•  Discharging Power: 5W (max)
•  Charging Power: 100W (max)
•  Charge Current: 10A (max)
•  Discharge Current: 0.4A (max)
•  Cell Balancing: 2S–6S (LiPo, Li-ion, LiHV, LiFe); 4S–18S (NiMH)
•  Functions: Charge / Discharge / Storage / Balance
•  Channel: Single
•  Input Connector: AC
•  Output Connector: XT60
•  Dimensions: 139.8 × 83 × 40 mm
•  Net Weight: Approx. 310g

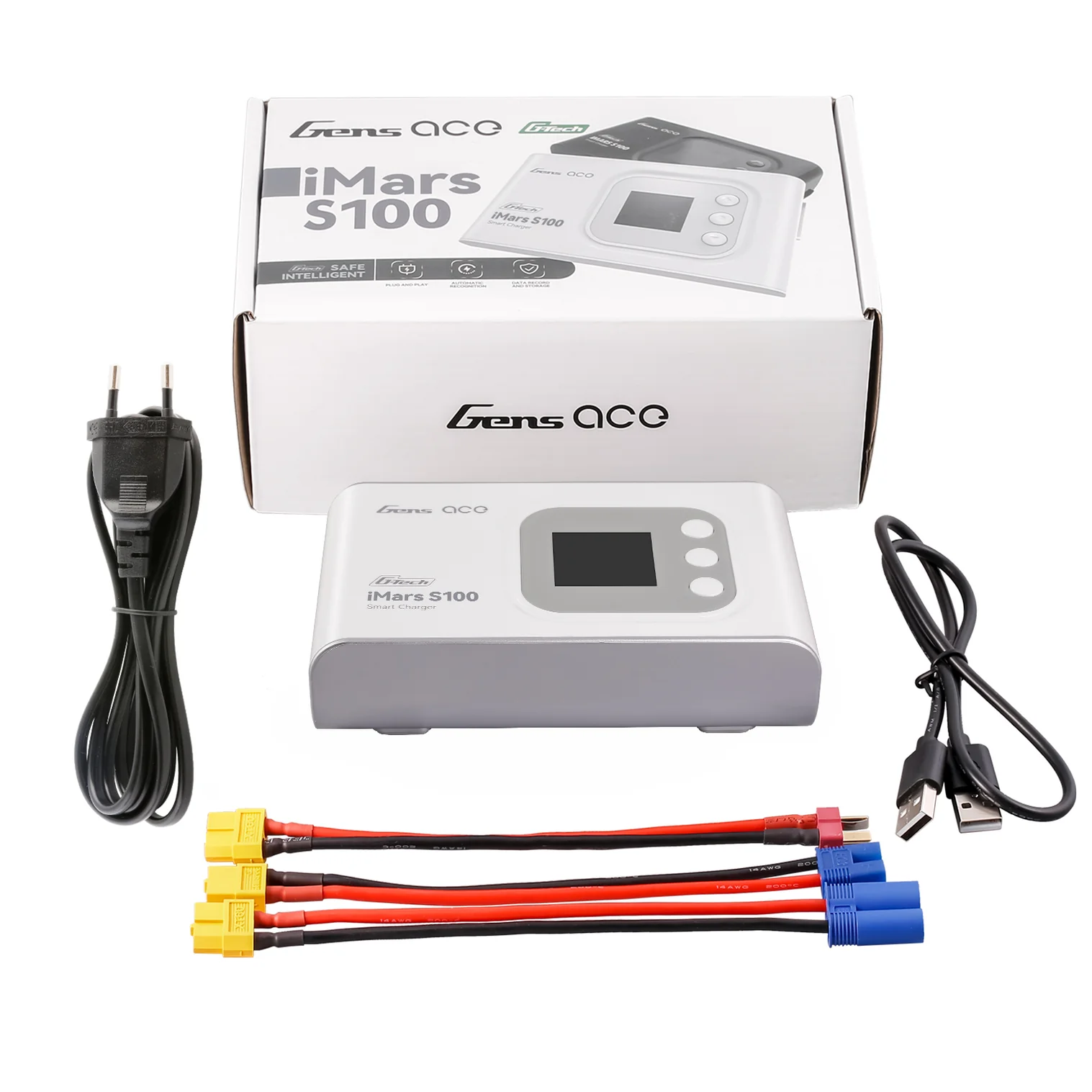

•  Included Accessories: AC Input Cable, XT60-T, XT60-EC5, XT60-EC3 adapters, USB cable
• Output Portable: XT60
