TK14000-EU M8AC SMART AC CHARGER

Description

CHARGE
Input voltage AC 100-240V@MAX2.5A, DC 7-35V@MAX25A

Battery type : LiPo LiHV LiFe Lilon LTO @1-8S, NiMH@1-20S Pb@1-12S

Balance current 1000mA@4.2V

Balance accuracy <0.005V

Charging power 0.1-20A@600W

Discharging power 0.1-20A@600W Recyle mode, 0.1-3A@20W Normal mode

USBC output MAX 20.0V@65W Upgrade

Voltage 1.0V-5.0V@1-8S

Internal resistance 1-99mΩ@1-8S

MEASURER

PWM 880us-2200us@20-400Hz

PPM 880us-2200us×8 CH@20-50Hz

SBUS 880us-2200us×16 CH@20-100Hz

OUTPUT
PWM 500us-2500us@20-1000Hz

PPM 880us-2200us×8CH@50Hz

SBUS 880us-2200us×16CH@74Hz

Power supply 1-20A@1-35V Mode: CC+CV

GENERAL

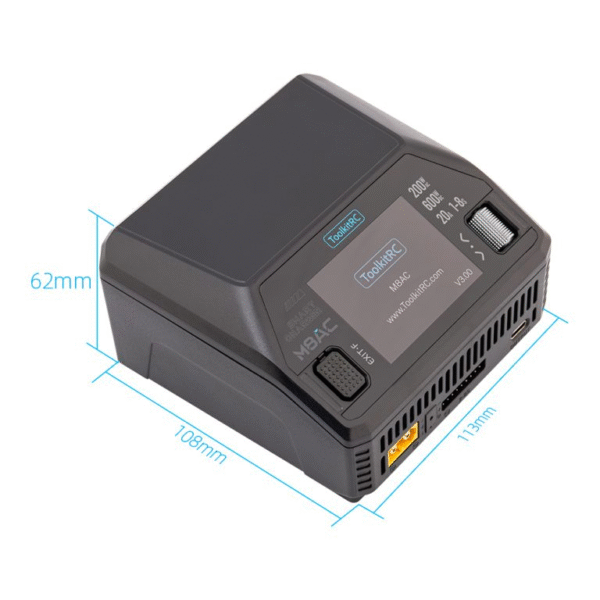

Product size 108×113×62mm

Product weight 500g

Packing size 136×153×67mm

Packaging weight 600g
