Description

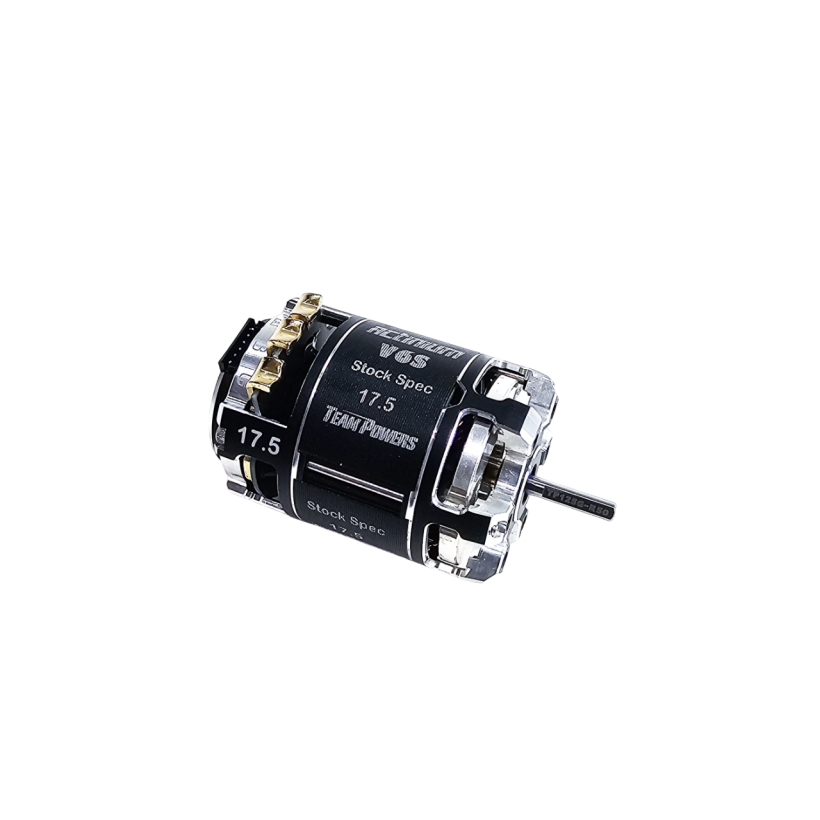

Enhancements based on the Actinium V5S motor:
•4~5% weight lighter through fine adjustment on Motor Can machining profiles
•Lower internal resistance for more efficient operation
•Revised rotor magnetic material for improved strength, efficiency and extend the fade out time •Hand wound for maximum accuracy and efficiency
•ROAR approved and EFRA/BRCA approval is proceeding
•Available Turns: 13.5T, 17.5T, 21.5T, 25.5T Specifications
•Based on IFMAR/ROAR/EFRA/BRCA design specifications.
•13.5T, 17.5T, 21.5T,25.5T motors are all ROAR approved. 13.5T, 17.5T, 21.5T are BRAC/EFRA approved. •Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.
•Shaft Diameter: 3.17mm
•Magnet Dimensions 12.5 x7.2×25.2mm (13.5T~25.5T)
•Variable timing end bell
•Weight: 150~160g (varies between turns)
•Recommended RC Model Car: 1:10 touring, Buggy, MINI Car. Available Turns: 13.5T, 17.5T, 21.5T, 25.5T
•Lower internal resistance for more efficient operation
•Revised rotor magnetic material for improved strength, efficiency and extend the fade out time •Hand wound for maximum accuracy and efficiency
•ROAR approved and EFRA/BRCA approval is proceeding
•Available Turns: 13.5T, 17.5T, 21.5T, 25.5T Specifications
•Based on IFMAR/ROAR/EFRA/BRCA design specifications.
•13.5T, 17.5T, 21.5T,25.5T motors are all ROAR approved. 13.5T, 17.5T, 21.5T are BRAC/EFRA approved. •Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.
•Shaft Diameter: 3.17mm
•Magnet Dimensions 12.5 x7.2×25.2mm (13.5T~25.5T)
•Variable timing end bell
•Weight: 150~160g (varies between turns)
•Recommended RC Model Car: 1:10 touring, Buggy, MINI Car. Available Turns: 13.5T, 17.5T, 21.5T, 25.5T
